Product Details:
|
| Abrasive: | Aluminium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30# | Iterm NO.: | FAC3552525 |
| Application: | Ferrous Metal Steel And Inox | Bonding Agent: | Resin Bonded |
| Arbor Size: | 1 In | Disc Type: | Flat Cutting Disc |
| High Light: | 4400RPM Abrasive Cut Off Wheel,14 Inch Abrasive Cut Off Wheel,EN12413 Stationary Saws Cut Off Wheel |
||

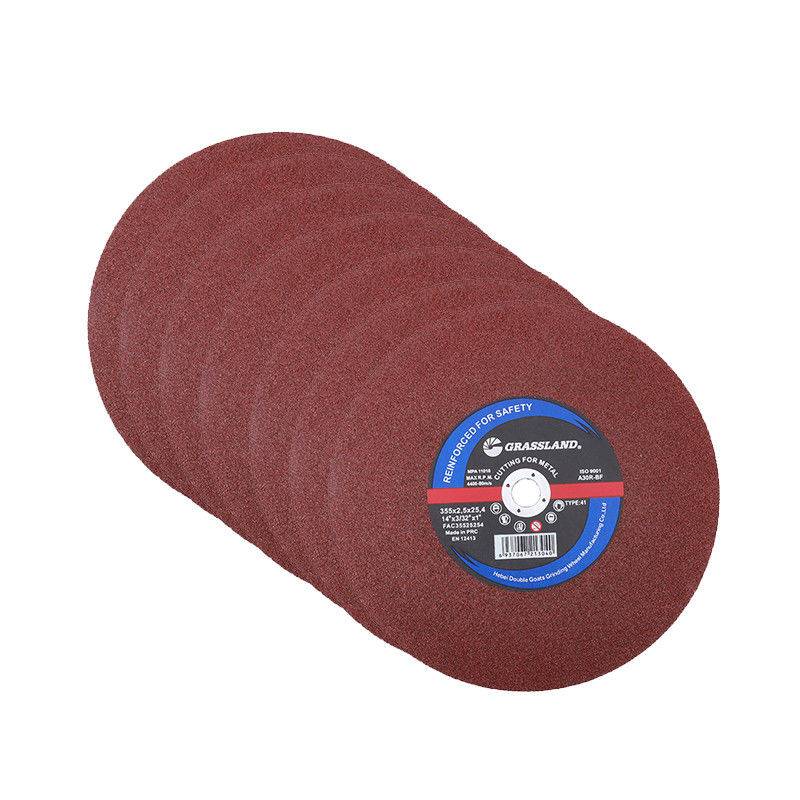

14inch Performance cutting on metal with portable chop saws and stationary saws
Spec: A24BF
R grade of hardness
Diameter: 1355x2.5x25.4 --14inch
Hole/Bore: 25.4mm/20MM/32MM
Vmax: 80 m/s
Max RPM: 4400
Above average performance.
Excellent price to performance ratio.
Comfortable and easy to use.
Manufactured according to EN12413.
Conforms to MPA HANNOVER
Grassland Cut-off Wheels are manufactured using Aluminium Oxide abrasive grit with fibreglass reinforcing and resin bonded in accordance with MPA safety requirement and ISO 9001 standard. They are specially designed for aggressive removal of materials without loading and very fast stock removal on metal and stainless steel. All of them are externally reinforced with layers of fiberglass for maximum safety, and can reduce cutting time 50%, require less force and provide vibration-free cutting, no burring to avoid rework.
Applications
Cutting-off thin steel sheet, corrugated sheet, small diameter pipe, small diameter round bar, and thin stainless steel sheet.
Cutting-off structural steel, stainless steel, and small diameter round bar, etc.
| Cutting wheel information: | |||
| Product Name | 355 mm cut-off wheel | Abrasive | premium Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 4400 | Package |
Kraft Carton and Pallet |
| Grit size | 24#,30#, | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
Other items you may be interested as below,
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) | MOQ |
| Flat cutting disc for stone 80 m/s | FCC3003225 | T41-300X3.2X25.4MM | PC | 25 | 11.5/12.5 | 30*30*9.5 | 5,000 |
| FCC3004025 | T41-300X4.0X25.4MM | PC | 25 | 14/15 | 30*30*11 | 5,000 | |
| FCC3503225 | T41-350X3.2X25.4MM | PC | 25 | 16/17 | 35.5*35.5*9.5 | 5,000 | |
| FCC3504025 | T41-350X4.0X25.4MM | PC | 20 | 17/18 | 35.5*35.5*9.5 | 5,000 | |
| FCC4003225 | T41-400X3.2X25.4MM | PC | 25 | 18.5/19.5 | 40*40*9.5 | 5,000 | |
| FCC4004025 | T41-400X4.0X25.4MM | PC | 20 | 16.5/17.5 | 40*40*11 | 5,000 |
| Application | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox 80m/s | FSC3003225 | T41-300X3.2X25.4MM | PC | 25 | 13/14 | 30*30*9.5 |
| FSC3004025 | T41-300X4.0X25.4MM | PC | 25 | 14/15 | 30*30*11 | |
| FSC3503225 | T41-350X3.2X25.4MM | PC | 25 | 17/18 | 35.5*35.5*9.5 | |
| FSC3504025 | T41-350X4.0X25.4MM | PC | 20 | 17/18 | 35.5*35.5*9.5 | |
| FSC4003225 | T41-400X3.2X25.4MM | PC | 25 | 22/23 | 40*40*9.5 | |
| FSC4004025 | T41-400X4.0X25.4MM | PC | 20 | 22/23 | 40*40*9.5 |
