Product Details:
|
| Abrasive: | Zirconium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 36-40-60-80 | Iterm NO.: | FZA125X22 |
| Application: | Ferrous Metal And Inox | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Conical Type |
| High Light: | 180mm Conical Flap Disc,P40 Conical Flap Disc,P40 Aluminium Oxide Flap Disc |
||

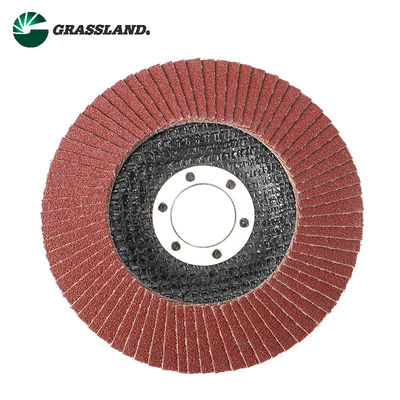

Grassland 180 x 22mm Conical Flap Discs, Aluminium Oxide - Fibre Backed P40
High performance alternative to sanding discs with the advantage over depressed centre grinding discs on light gauge sheet metal where surface finish is important.
The Alumina paper is highly heat resistant because of its vulcanized multi-layered fiber backing. It is ideal for the rapid and clean removal of spurs and sprues and other unwanted material. and excellent for the flattening, smoothing and blending of welds.
Mass industrial fabrication, Custom Builds, Auto, Nautical, Furniture and Construction applications all benefit from Grassland abrasives.
Overlapped abrasive strips slowly wear away revealing fresh abrasive, ensuring the disc always cuts effectively, reducing clogging and providing constant finish throughout disc life.
No backing pads needed. Safe to use at 80m/s on any grinder.
• Disc Diameter 180mm
• Disc Type Conical (Type 29)
• Standards/approvals Manufactured According to EN13743
• Maximum Operating Speed 8,600rpm
• Abrasive Material Aluminium Oxide
Caution
Always wear eye protection when using abrasive products
Always wear safety gloves
Always use the wheel guard supplied by the manufacturer
Do not use wheels that have been dropped or otherwise damaged
Always use flanges of equal diameter when mounting grinding wheels
| Cutting wheel information: | |||
| Product Name | 7inch flap discs for alumina | Abrasive | zirconium oxide |
| Hardness | R Grade | Safety Standard | EN13743 |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 8600 | Package |
Kraft Carton and Pallet |
| Grit size | P36/P40/P60/P80 | HS Code | 68042210 |
|
Certificate |
MPA ,ISO9001,ISO14001 |
Loading Port | Tianjin or else |
| Specification | Grit | Unit | Qty/box | Qty/Carton | NW | GW | carton(MM) |
| 100*16MM | 36# | PC | 50 | 200 | 12 | 13 | 530*250*250 |
| 40# | PC | 50 | 200 | 11 | 12 | ||
| 60# | PC | 50 | 200 | 10 | 11 | ||
| 80# | PC | 50 | 200 | 9 | 10 | ||
| 115*22MM | 36# | PC | 50 | 200 | 17 | 18 | 630*270*270 |
| 40# | PC | 50 | 200 | 17 | 18 | ||
| 60# | PC | 50 | 200 | 16 | 17 | ||
| 80# | PC | 50 | 200 | 15 | 16 | ||
| 125*22MM | 36# | PC | 50 | 200 | 21 | 22 | 680*290*280 |
| 40# | PC | 50 | 200 | 20 | 21 | ||
| 60# | PC | 50 | 200 | 19 | 20 | ||
| 80# | PC | 50 | 200 | 18 | 19 | ||
| 150*22MM | 36# | PC | 25 | 100 | 17 | 18 | 350*350*300 |
| 40# | PC | 25 | 100 | 16 | 17 | ||
| 60# | PC | 25 | 100 | 15 | 16 | ||
| 80# | PC | 25 | 100 | 14 | 15 | ||
| 180*22MM | 36# | PC | 25 | 100 | 22 | 23 | 400*400*300 |
| 40# | PC | 25 | 100 | 21 | 22 | ||
| 60# | PC | 25 | 100 | 20 | 21 | ||
| 80# | PC | 25 | 100 | 19 | 20 |
Other abrasive cutting and grinding discs you may be interested as below,
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for metal 80m/s | DAG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*25*19 |
| DAG1807022 | T27-180X7.0X22.2MM | PC | 30 | 11/12 | 37.5*19*13.5 | |
| DAG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 37.5*19*29.7 | |
| DAG2304022 | T27-230X4.0X22.2MM | PC | 30 | 10.5/11.5 | 24*24*17.7 | |
| DAG2306022 | T27-230X6.0X22.2MM | PC | 30 | 18/19 | 24*24*22.7 | |
| DAG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*26.7 | |
| DAG2308022 | T27-230X8.0X22.2MM | PC | 30 | 21/22 | 25*24.5*29.7 |
