Product Details:
|
| Abrasive: | Aluminium Oxide SA | Standard: | EN12413 |
|---|---|---|---|
| Hardness: | A45RBF | Max Working Speed: | 80M/S |
| Grit Size: | 24#,30#,46#, | Iterm NO.: | DSC1153022 |
| Application: | Ferrous Metal Steel And Inox | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Depressed Center Type |
| Highlight: | depressed center inox grinding discs,115 inox grinding discs,115 metal cutting disc |
||

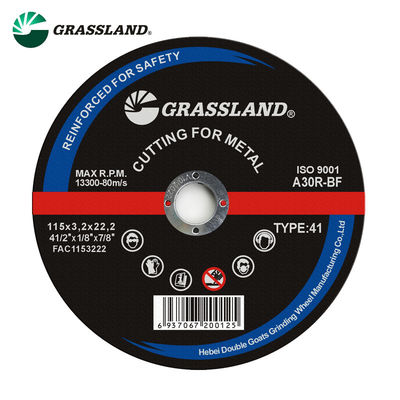

115 x 3 mm Angle Abrasive Metal cutting Disc for X-LOCK grinders
Products Description--
Diameter: 115mm / Bore: 22.23mm
Thickness: 3.2mm / Profile: DPC
Application: Cutting Metal
Aluminium Oxide Grit Resin Bonded
Fibreglass Reinforcement
For Ferrous Metals, Iron & Steel
Manufactured to EN12413
For 115mm Angle Grinders
Max 13300rpm
manufactured with heat treated aluminum oxide grains in high concentrations for smooth effortless use when cutting center pipe, metal tubing, rebar, iron pipe, bar stock or metal tubing. Additionally, these 1/8" thick hybrid wheels allow the user to cut and also lightly grind without having to change their wheel.
Features and benefits
These good quality and long lasting discs ensure fast, straight and clean cutting
Continuous wheel blade offers smooth and chip-free cuts
• Applications: All Metal, Steel and Stainless Steel including rebar, steel pipe, structural & galvanized steel, sheet metal, structural tubing, black steel
| Cutting wheel information: | |||
| Product Name | 115 X 3.0 X 22.2 MM | Abrasive | Monocrystalline fused alumina |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 8500 | Package |
Kraft Carton and Pallet |
| Grit size | 24#,30#,46#, | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
| Item Code | Dimension | Dimension | Speed | Standard |
| (MM) | (Inch) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
