Product Details:
|
| Abrasive: | Aluminium Oxide SA | Shape: | Round Disc |
|---|---|---|---|
| Hardness: | A24RBF | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30#,46#, | Nets: | 3 Reinforced Fiberglass Nets |
| Application: | Ferrous Metal Steel And Inox | Bonding Agent: | Resin Bonded |
| Arbor Size: | 5/8 In | Disc Type: | Depressed Center Type |
| Highlight: | 30 grit abrasive grinding wheel,abrasive grinding wheel 115mm,30 grit angle grinder abrasive wheel |
||

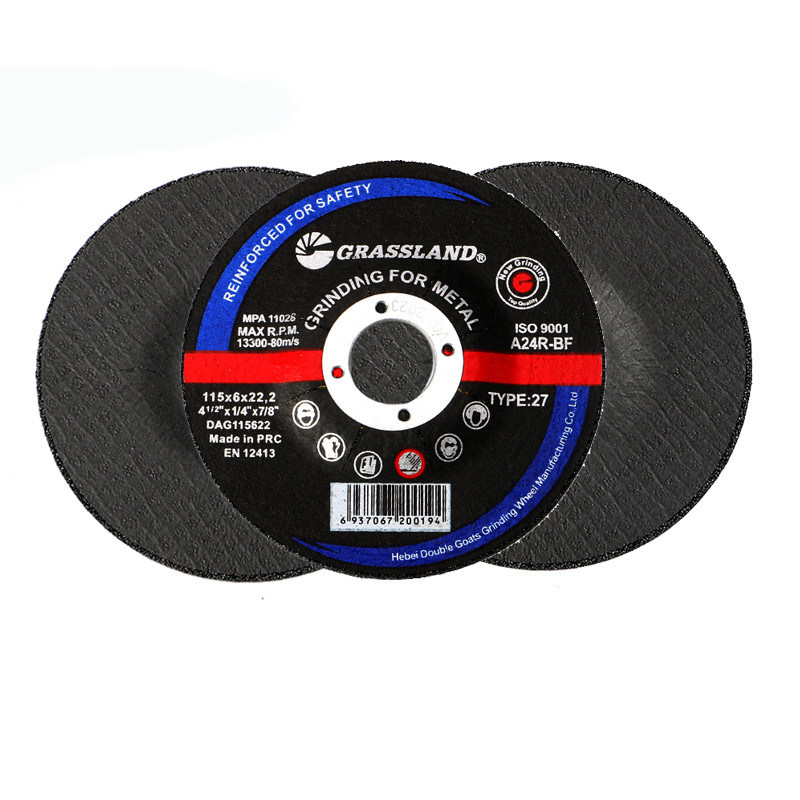

115mm Grinding discs for steel (115 x 6 x 22.2mm) 4.5" GRASSLAND
Products Description--
GRASSLAND premium-grade wheels are manufactured with heat treated aluminum oxide grains,constructed with 3 high tensile strength fiberglass mesh and balanced to avoid vibration during use.,In addition, in high concentrations for smooth effortless use when grinding, deburring welds, or dressing and apply for metal, concrete, masonry, pipeline, asphalt, and stainless steel cutting.
Application: Grinding Steelwork Dressing Welds
| Cutting wheel information: | |||
| Product Name | 115X 6.0 X 22MM | Abrasive | Monocrystalline fused alumina |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 13300 | Package |
Kraft Carton and Pallet |
| Grit size | 24#,30#,46#, | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
| Item Code | Dimension | Dimension | Speed | Standard |
| (MM) | (Inch) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
