Product Details:
|
| Abrasive: | Aluminium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30#,46#,60# | Iterm NO.: | FSC1253022 |
| Application: | Ferrous Metal And Steel Cutting | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Flat Type |
| High Light: | 30 grit abrasive wheel for grinder,4.5" abrasive wheel for grinder,t27 angle grinder abrasive wheel |
||

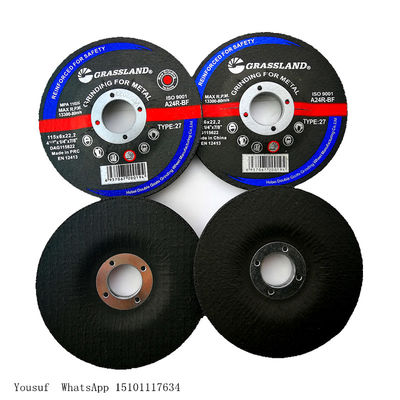

4.5" x 1/4" x 7/8" A24R T27 Grinding Wheels
This grinding discs are manufactured using high-grade aluminium oxide + phenolic resin steel, these grinding discs perform much more aggressive cutting in metal and stainless with safety and more efficiency.with R-grade hardness for longer life during more aggressive grinding. These grains are resin bonded over high tensile strength fiberglass mesh and balanced to avoid vibration during use.
Grinding Disc Grassland characterized by maximum grinding performance, high abrasive shot, maximum operating speed of 80m/s and excellent durability.
Application
All Metal, Steel and Stainless Steel including rebar, steel pipe, structural & galvanized steel, sheet metal, structural tubing, black steel
| Cutting wheel information: | |||
| Product Name | 115 mm grinding disc | Abrasive | Aluminum oxide and corundum |
| Hardness | R Grade | Net Grade | Reinforced fiberglass |
| Max working speed | 80 m/s | OEM Service | Acceptable |
| R.P.M | 13300 | Package | Kraft Carton and Pallet |
| Grit size | 46#,60# | HS Code | 68042210 |
Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed Cutting disc for metal 80m/s | DAC1002516 | T42-100X2.5X16MM | PC | 200 | 8/9 | 22*22*20.2 |
| DAC1152522 | T42-115X2.5X22.2MM | PC | 200 | 12/13 | 24.5*24.5*20.2 | |
| DAC1252522 | T42-125X2.5X22.2MM | PC | 200 | 14/15 | 26.5*26.5*20.2 | |
| DAC1502522 | T42-150X2.5X22.2MM | PC | 150 | 15/16 | 34*26*17 | |
| DAC1802522 | T42-180X2.5X22.2MM | PC | 150 | 19.5/20.5 | 40*20*26 | |
| DAC2302522 | T42-230X2.5X22.2MM | PC | 50 | 11.5/12.5 | 24*24*20.7 | |
| DAC2502522 | T42-250X2.5X22.2MM | PC | 50 | 11.5/12.5 | 25*25*19 | |
| Depressed Cutting disc for metal 80m/s | DAC1003216 | T42-100X3.2X16MM | PC | 400 | 21.5/20.5 | 22X22X19.7 |
| DAC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
| DAC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
| DAC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
| DAC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
| DAC2303222 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
| DAC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
