Product Details:
|
| Abrasive: | Aluminium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30#,46#,60# | Iterm NO.: | FAC1253022 |
| Application: | Ferrous Metal And Steel Cutting | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Depressed Center Type |
| High Light: | 125mm Metal Grinding Discs,125mm aluminium cutting disc,T42 metal cutting Discs |
||

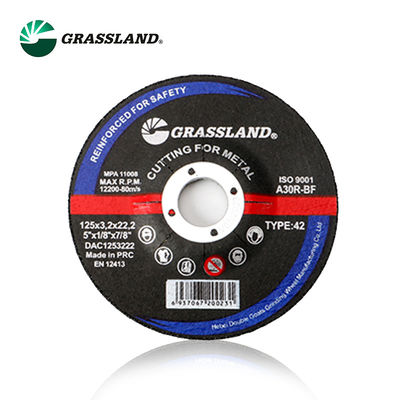

125mm 5" x 1/8" x 7/8" Depressed Center Grinding and cutting Discs for metal For Angle Grinder 5"
Metal Cutting Discs are manufactured using with tough aluminum oxide, heat-treated aluminum oxide , monocrystalline fused alumina (SA) or silicon carbide abrasive grain and fibreglass reinforcing and resin bonded to provide both safety and optimum cutting performance.Grassland grinding and cutting discs are produced in the state of the art ISO 9001:2000 certified manufacturing facility, with stringent process controls and final product quality checks.and the highes levels of product safety is maintained in accordance with EN12413 standard
Application
Type 42 depressed center cutting wheel, increase side strength and improve abrasive resistance, which get excellent durability and sharpness.Top quality Resin-bonded glass fibre reinforced aluminium oxide metal cutting discs for cutting ferrous and non-ferrous metals. Suitable for all metal-cutting.
QUICKLY & Effortlessly Cut through All Metal, Steel and Stainless Steel parts including rebar, steel pipe, structural & galvanized steel, sheet metal, structural tubing, black steel, cable and small to medium diameter solid pieces over an extra-long life span due to Grassland 's High-performance aluminum oxide grain and proprietary hard bond matrix.
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed Cutting disc for metal 80m/s | DAC1002516 | T42-100X2.5X16MM | PC | 200 | 8/9 | 22*22*20.2 |
| DAC1152522 | T42-115X2.5X22.2MM | PC | 200 | 12/13 | 24.5*24.5*20.2 | |
| DAC1252522 | T42-125X2.5X22.2MM | PC | 200 | 14/15 | 26.5*26.5*20.2 | |
| DAC1502522 | T42-150X2.5X22.2MM | PC | 150 | 15/16 | 34*26*17 | |
| DAC1802522 | T42-180X2.5X22.2MM | PC | 150 | 19.5/20.5 | 40*20*26 | |
| DAC2302522 | T42-230X2.5X22.2MM | PC | 50 | 11.5/12.5 | 24*24*20.7 | |
| DAC2502522 | T42-250X2.5X22.2MM | PC | 50 | 11.5/12.5 | 25*25*19 | |
| Depressed Cutting disc for metal 80m/s | DAC1003216 | T42-100X3.2X16MM | PC | 400 | 21.5/20.5 | 22X22X19.7 |
| DAC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
| DAC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
| DAC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
| DAC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
| DAC2303222 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
| DAC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
| Cutting wheel information: | |||
| Product Name | 125mm grinding disks | Abrasive | Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 12250 | Package |
Kraft Carton and Pallet
|
| Grit size | 24#,30#,46#, | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
