Product Details:
|
| Abrasive: | Aluminium Oxide And Corundum | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 46#,60# | Iterm NO.: | FAC1801622 |
| Application: | Ferrous Metal And All Steel Metal Cutting | Bonding Agent: | Resin Bonds |
| Arbor Size: | 7/8 In | Disc Type: | Flat Type |
| High Light: | 180X1.6mm thin angle grinder discs,180mm thin angle grinder discs,7 Inch 180mm Cutting Discs |
||

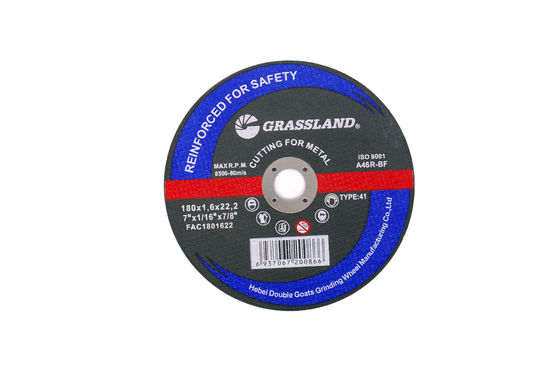

7" 180mm X 1.6mm Thin flat center Angle Grinder Cutting Discs wheels Grassland abrasives
Technical Specification:
Size - 178mm x 1.6mm x 22mm
RPM - 8,600 rpm 80 m/s
Grade - 20A46RBF
F41/F42 Flat/DPC - F41 (FLAT)
EN/O.S.A - O.S.A EN12413
Grassland Premium 7” Flat Cut Off Wheels for Metal & Stainless Steel (INOX) | 7 Inch x .063 x 7/8-Inch | Optimized for JZX 7” Angle Grinders and compatible with All 7” Angle Grinders.Extremely fast and precise cutting with minimal effort required. Grassland discs have been developed for precision cutting sheet metal and with strengthened core stability for reduced vibration. Suitable for use on a wide variety of metal cutting applications including Stainless Steel, Sheet metal, Mild Steel & High Grade Steel.
They must never be used for grinding and must always be presented to the workpiece at an angle of 90º. For use with a variety of machines, mini-grinders to stationary cutting-off machines. It is important to choose between a metal or stone cutting disc according to the material being cut, and to ensure that the correct wheel is properly mounted.
| Cutting wheel information: | |||
| Product Name | 7"metal Cutting discs | Abrasive | Aluminum oxide and corundum |
| Hardness | R Grade | Net Grade | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 12250 | Package |
Kraft Carton and Pallet
|
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
1.Super thin cutting disc for metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for metal 80m/s | FAC0751095 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FAC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FAC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FAC1002016 | T42-100X2.0X16MM | PC | 400 | 15/16 | 27.7*22*22 | |
| FAC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FAC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FAC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FAC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FAC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FAC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FAC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FAC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FAC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FAC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FAC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FAC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
2-Type 27 Grinding wheel for Metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for metal 80m/s | DAG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DAG1006016 | T27-100X6.0X16MM | PC | 200 | 21/22 | 35.7*22*22 | |
| DAG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DAG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DAG1157022 | T27-115X7.0X22.2MM | PC | 100 | 17.5/16.5 | 24.5*24.5*22.2 | |
| DAG1158022 | T27-115X8.0X22.2MM | PC | 100 | 19.5/18.5 | 24.5*24.5*25.2 | |
| DAG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DAG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17.5/18.5 | 26.5*26.5*19.2 | |
| DAG1257022 | T27-125X7.0X22.2MM | PC | 100 | 20/19 | 26.5*26.5*22.2 | |
| DAG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*25.2 | |
| DAG1504022 | T27-150X4.0X22.2MM | PC | 100 | 18.5/19.5 | 32*32*14.2 | |
| DAG1506022 | T27-150X6.0X22.2MM | PC | 100 | 12/13 | 32*32*19.2 | |
| DAG1507022 | T27-150X7.0X22.2MM | PC | 60 | 18/17 | 32*32*13.7 | |
| DAG1508022 | T27-150X8.0X22.2MM | PC | 60 | 20/19 | 32*32*15.2 | |
| DAG1804022 | T27-180X4.0X22.2MM | PC | 60 | 14.5/15.5 | 37.5*19*17.7 | |
| DAG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*25*19 | |
| DAG1807022 | T27-180X7.0X22.2MM | PC | 30 | 11/12 | 37.5*19*13.5 | |
| DAG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 37.5*19*29.7 | |
| DAG2304022 | T27-230X4.0X22.2MM | PC | 30 | 10.5/11.5 | 24*24*17.7 | |
| DAG2306022 | T27-230X6.0X22.2MM | PC | 30 | 18/19 | 24*24*22.7 | |
| DAG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*26.7 | |
| DAG2308022 | T27-230X8.0X22.2MM | PC | 30 | 21/22 | 25*24.5*29.7 |
