Product Details:
|
| Abrasive: | Aluminium Oxide And Corundum | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 46#,60# | Iterm NO.: | DCC1803022 |
| Application: | Ferrous Metal And All Steel Metal Cutting | Bonding Agent: | Resin Bonds |
| Arbor Size: | 7/8 In | Disc Type: | Flat Type |
| Highlight: | 7" angle grinder stone cutting discs,180mm angle grinder stone cutting discs,7" grinding disc for stone |
||

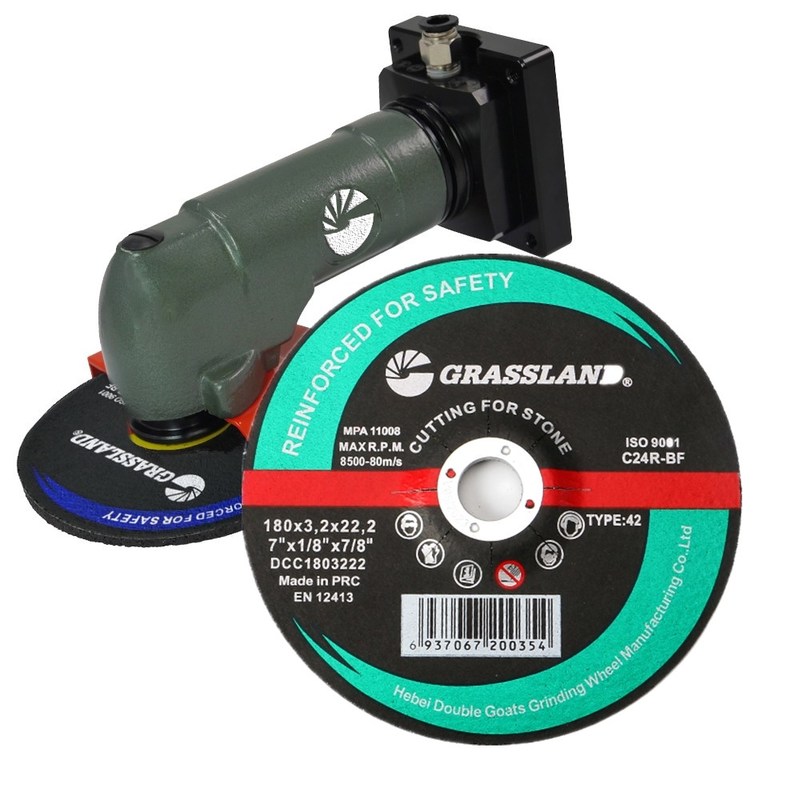

Reinforced 180mm Cutting Discs For Marble Or Concrete
Technical Specification:
Size - 180mm x 3.2mm x 22mm
RPM - 8,600 rpm 80 m/s
Grade - 20A46RBF
F41/F42 Flat/DPC - F41 (FLAT)
EN/O.S.A - O.S.A EN12413
High Performance, Abrasive-Grade Silicon Carbide Cut-Off Wheel. Resin Bonded and Fiberglass Reinforced for Maximun SafetyMedium Thickness of wheel Improves Durability, Efficiency and Cutting Speeds with low Material Waste and Burr Formation. Drepressed center for better cutting accessUsed with Angle Grinder for easily cutting Masonry materials like; Concrete, Bricks, Stone, Etc.Diameter: 7 in / Arbor Hole: 7/8 in / Thickness: 1/8 inPackage Quantity: 5 Wheels
Premium quality, fibreglass reinforced cutting discs for general masonry use. Manufactured in compliance with EN12413 with two fibreglass reinforcements. Produced with high grade, highly refined silicon carbide grit. Bonded with high quality
It is important to choose between a metal or stone cutting disc according to the material being cut, and to ensure that the correct wheel is properly mounted.
Suitable for cutting most masonry materials, including block, brick, concrete, stone, roof tiles etc. Also suitable for cutting many non-ferrous metals including copper, brass and aluminium.
| Cutting wheel information: | |||
| Product Name | 7 Cutting discs for Masonry | Abrasive | Aluminum oxide and corundum |
| Hardness | R Grade | Net Grade | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 8500 | Package |
Kraft Carton and Pallet
|
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
1.Super thin cutting disc for SS
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 |
2-Type 27 Grinding wheel for Metal
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for metal 80m/s | DAG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DAG1006016 | T27-100X6.0X16MM | PC | 200 | 21/22 | 35.7*22*22 | |
| DAG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DAG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DAG1157022 | T27-115X7.0X22.2MM | PC | 100 | 17.5/16.5 | 24.5*24.5*22.2 | |
| DAG1158022 | T27-115X8.0X22.2MM | PC | 100 | 19.5/18.5 | 24.5*24.5*25.2 | |
| DAG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DAG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17.5/18.5 | 26.5*26.5*19.2 | |
| DAG1257022 | T27-125X7.0X22.2MM | PC | 100 | 20/19 | 26.5*26.5*22.2 | |
| DAG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*25.2 | |
| DAG1504022 | T27-150X4.0X22.2MM | PC | 100 | 18.5/19.5 | 32*32*14.2 | |
| DAG1506022 | T27-150X6.0X22.2MM | PC | 100 | 12/13 | 32*32*19.2 | |
| DAG1507022 | T27-150X7.0X22.2MM | PC | 60 | 18/17 | 32*32*13.7 | |
| DAG1508022 | T27-150X8.0X22.2MM | PC | 60 | 20/19 | 32*32*15.2 | |
| DAG1804022 | T27-180X4.0X22.2MM | PC | 60 | 14.5/15.5 | 37.5*19*17.7 | |
| DAG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*25*19 | |
| DAG1807022 | T27-180X7.0X22.2MM | PC | 30 | 11/12 | 37.5*19*13.5 | |
| DAG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 37.5*19*29.7 | |
| DAG2304022 | T27-230X4.0X22.2MM | PC | 30 | 10.5/11.5 | 24*24*17.7 | |
| DAG2306022 | T27-230X6.0X22.2MM | PC | 30 | 18/19 | 24*24*22.7 | |
| DAG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*26.7 | |
| DAG2308022 | T27-230X8.0X22.2MM | PC | 30 | 21/22 | 25*24.5*29.7 |
