Product Details:
|
| Abrasive: | Aluminium Oxide And Corundum | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,46#,60# | Iterm NO.: | FAC1251622 |
| Application: | Ferrous Metal And All Steel Metal Cutting | Bonding Agent: | Resin Bonds |
| Arbor Size: | 7/8 In | Disc Type: | Flat Type |
| High Light: | corundum abrasive metal cutting discs,230x3.2x22 abrasive metal cutting discs,9 in angle grinder discs 230mm |
||

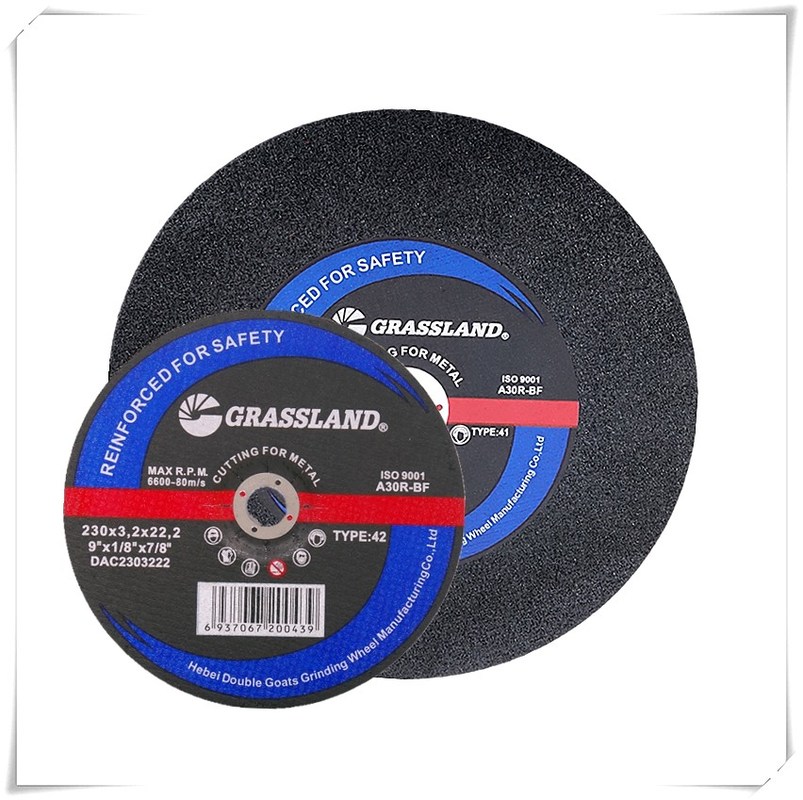

9in 230 mm metal cutting disc wheels for all steel EN12413 230X3.2X22
Product information--
- Outer diameter 230mm.
- Inner bore diameter 22.23mm.
- Thickness 3.2mm.
- Provides fast and smooth cutting.
- Appropriate for hand-held angle grinders.
- Maximum circumferential speed: 80 m/s (depending on rpm and disc diameter)
- Max 6650 rpm.
-Superior bond system.
-Outstanding balance between lifetime and cutting speedThese discs are a top quality range for most metal applications.
-Manufactured for European safety standards and marked with EN12413.
-These discs offer professional quality performance and long life.
-Specially developed for cutting steel and stainless steel (INOX) – the disc composition contains less than 0.1% iron, sulfur or chlorine
Applications--
Cutting metals in the form of rebar, channels, angle profiles, pipes and sheet or other irregular sections Shaping of metal
| Cutting wheel information: | |||
| Product Name | 230mm metal cutting disc | Abrasive | Aluminum oxide and corundum |
| Hardness | R Grade | Net Grade | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 6650 | Package |
Kraft Carton and Pallet
|
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
1.T42 Depressd center grinding discs
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed Cutting disc for metal 80m/s | DAC1003216 | T42-100X3.2X16MM | PC | 400 | 21.5/20.5 | 22X22X19.7 |
| DAC1153222 | T42-115X3.2X22.2MM | PC | 200 | 14/15 | 24.5*24.5*22.2 | |
| DAC1253222 | T42-125X3.2X22.2MM | PC | 200 | 16/17 | 26.5*26.5*22.2 | |
| DAC1503222 | T42-150X3.2X22.2MM | PC | 200 | 25/26 | 32*32*22.2 | |
| DAC1803222 | T42-180X3.2X22.2MM | PC | 100 | 18/19 | 37.5*19*23.7 | |
| DAC2303222 | T42-230X3.2X22.2MM | PC | 50 | 14/15 | 24*24*23.7 | |
| DAC2503222 | T42-250X3.2X22.2MM | PC | 50 | 17.5/16.5 | 25*25*21 |
2-Type1 Flat metal cutting discs
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for metal 80m/s | FAC0751095 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FAC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FAC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FAC1002016 | T42-100X2.0X16MM | PC | 400 | 15/16 | 27.7*22*22 | |
| FAC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FAC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FAC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FAC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FAC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FAC1252022 | T41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FAC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FAC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FAC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FAC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FAC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FAC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 | |
| Flat cutting disc for metal 80 m/s | FAC3003225 | T41-300X3.2X25.4MM | PC | 25 | 13/14 | 30*30*9.5 |
| FAC3004025 | T41-300X4.0X25.4MM | PC | 25 | 14/15 | 30*30*11 | |
| FAC3503225 | T41-350X3.2X25.4MM | PC | 25 | 17/18 | 35.5*35.5*9.5 | |
| FAC3504025 | T41-350X4.0X25.4MM | PC | 20 | 17/18 | 35.5*35.5*9.5 | |
| FAC4003225 | T41-400X3.2X25.4MM | PC | 25 | 22/23 | 40*40*9.5 | |
| FAC4004025 | T41-400X4.0X25.4MM | PC | 20 | 22/23 | 40*40*11 |
