Product Details:
|
| Abrasive: | Aluminium Oxide And Other Materials | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80M/S |
| Grit Size: | 46#,60# | Iterm NO.: | FAC1001010 |
| Application: | Ferrous Metal And All Steel Cutting | Bonding Agent: | Resin |
| Arbor Size: | 3/8 In | Disc Type: | Flat Type |
| Highlight: | EN12413 4 inch metal cutting discs,MPA 4 inch metal cutting discs,EN12413 4 inch metal cutting wheel |
||

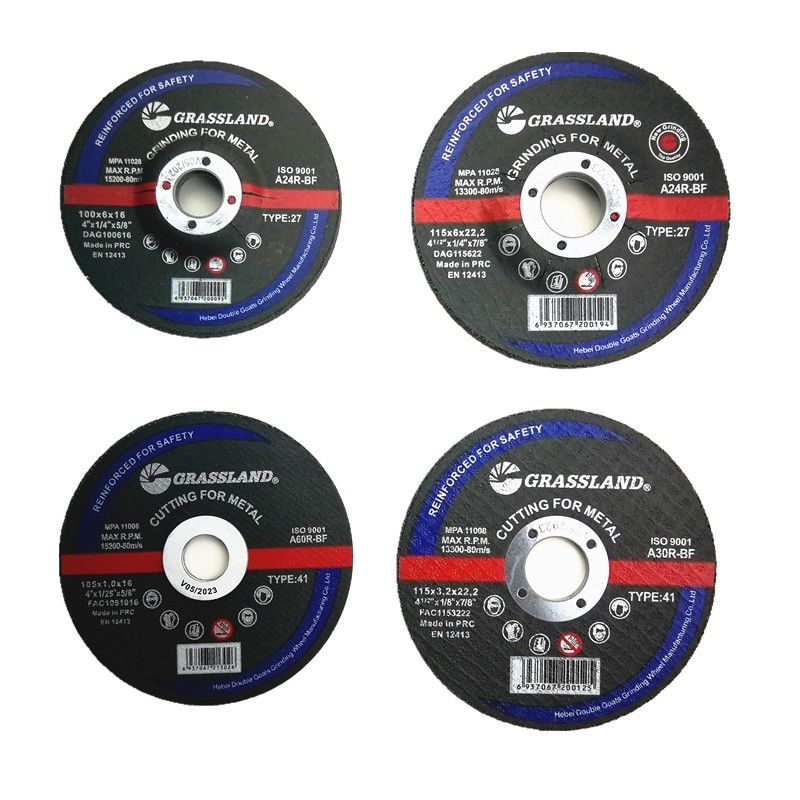

Decisive 4inch cut off abrasive cutting wheel for metal for Industrial
Description
Technical Specification:
Size - 100mm x 1.6mm x 16mm
RPM - 15300 rpm 80 m/s
Grade - A60RBF
F41/F42 Flat/DPC - F41 (FLAT)
Grassland 4-in Metal Cut Off Wheel fits a 5/8" bore
Can be used with most angle grinders
Features aluminum oxide abrasive composition for quick and accurate cuts;
Two sheets of fiberglass mesh for durability and safety;
Applications include extended performan
ce cutting in all types of ferrous metals;
Slightly thicker than the 1mm standard disc, this disc is more suitable for heavier cutting jobs on thicker steel. Excellent for cutting stainless steel, mild / black steel and all metal. Also good for aluminium fabricators.extremely fast cutting with sharpness ,minimal vibration for more comfortable working,
They must never be used for grinding and must always be presented to the workpiece at an angle of 90º.
For use with a variety of machines, mini-grinders to stationary cutting-off machines.
Applications
Cutting metals in the form of rebar, channels, angle profiles, pipes and sheet
They are commonly used in building, shipbuilding, metal, foundry, engineering, chemical and other industries as well as in smaller workshops.
| Cutting wheel information: | |||
| Product Name | 4 cut off wheels | Abrasive | Aluminum oxide and corundum |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s
|
OEM Service | Acceptable |
| R.P.M | 15300 | Package |
Kraft Carton and Pallet
|
| Grit size | 46#,60# | HS Code | 68042210 |
|
Certificate
|
MPA EN12413,ISO9001
|
Loading Port | Tianjin or else |
Other items you may be interested as below,
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
