Product Details:
|
| Abrasive: | Brown Aluminium Oxide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 24#,30#,46#, | Iterm NO.: | DAG1250622 |
| Application: | Polishing And Grinding Metal,burr Free | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Depressed Center Type |
| Highlight: | MPA burr free metal grinding discs,125mm metal grinding discs,125 x 6.0 x 22.23mm abrasive grinding discs |
||

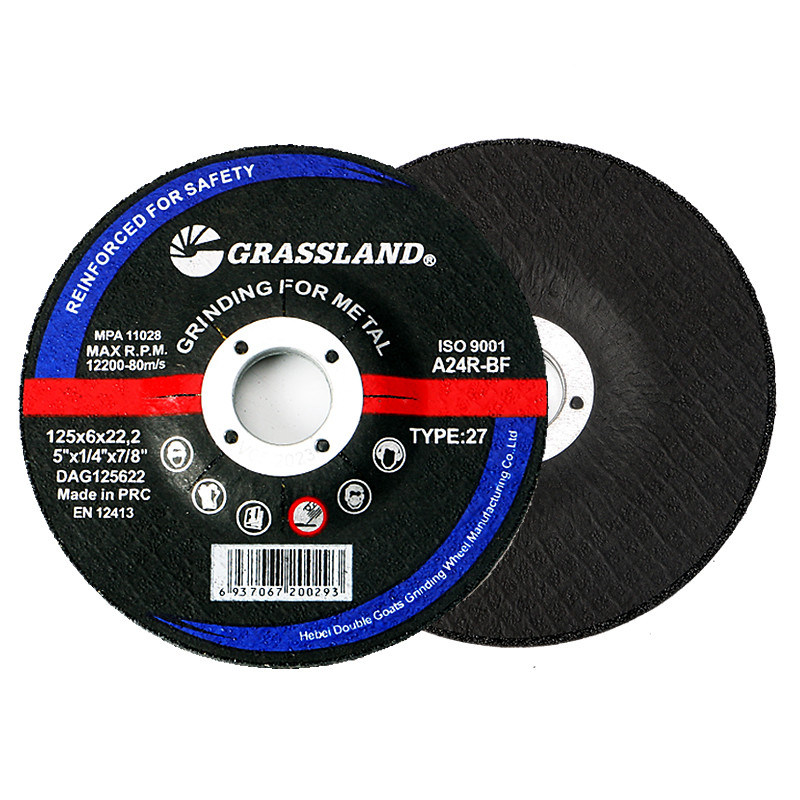

125mm grinding discs 125 x 6,0 x 22,23mm Shield for grinding metal
Specifications,---
GRASSLAND grinding disc is a sturdy disc with a good stock removal, a long service life and has a very smooth operation.
Suitable for all steels Usable on angle grinders.
Technical specifications:
diameter = 125mm
thickness = 6,0mm
axle size = 22,23mm
speed = 80 m/s
max. speed = 12250rpm
Package= 100pieces
Hebei double goats Metal Grinding Wheels are made to meet both ANSI and EN Standards.manufactured with premimun abrasive grain and in high concentrations for smooth effortless use when grinding, deburring welds, or dressing. Adopt 24 grit grain structure which allows uniform results at every angle. Special bonding formula allows for very fast stock removal on many types of metals.These grains are resin bonded over high tensile strength fiberglass mesh and balanced to avoid vibration during use.Our premium aluminum oxide grains with R-grade hardness for longer life durin g more aggressive grinding.
Due to strict criteria in the production and careful selection of materials, grinding wheels Grassland boast an excellent price / quality ratio and increasing popularity in various sectors.Very uniform, high density grain structure is extremely durable and self sharpening for long life and cooler cut.Extremely fast stock removal on hard metals with minimal pressure.
Application
Widely used for tank fabrication, power plant maintenance and repair, welding/metal fabrications shops, these are available to our clients in different specifications to suit their specific application requirement.
| Cutting wheel information: | |||
| Product Name | 125mm grinding Disc for steel | brasive | Brown Aluminum oxide and white Aluminum oxide |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed |
80 m/s |
OEM Service | Acceptable |
| R.P.M | 12250 | Package |
Kraft Carton and Pallet |
| Grit size | 24#,30#, | HS Code | 68042210 |
|
Certificate |
MPA EN12413,ISO9001 |
Loading Port | Tianjin or else |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for metal 80m/s | DAG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DAG1006016 | T27-100X6.0X16MM | PC | 200 | 21/22 | 35.7*22*22 | |
| DAG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DAG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DAG1157022 | T27-115X7.0X22.2MM | PC | 100 | 17.5/16.5 | 24.5*24.5*22.2 | |
| DAG1158022 | T27-115X8.0X22.2MM | PC | 100 | 19.5/18.5 | 24.5*24.5*25.2 | |
| DAG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DAG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17.5/18.5 | 26.5*26.5*19.2 | |
| DAG1257022 | T27-125X7.0X22.2MM | PC | 100 | 20/19 | 26.5*26.5*22.2 | |
| DAG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*25.2 | |
| DAG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*25*19 | |
| DAG2306022 | T27-230X6.0X22.2MM | PC | 30 | 18/19 | 24*24*22.7 | |
| DAG2307022 | T27-230X7.0X22.2MM | PC | 30 | 19/20 | 24*24*26.7 | |
| DAG2308022 | T27-230X8.0X22.2MM | PC | 30 | 21/22 | 25*24.5*29.7 |
11
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Depressed grinding disc for inox 80m/s | DSG1004016 | T27-100X4.0X16MM | PC | 200 | 14/15 | 21*21*25 |
| DSG1006016 | T27-100X6.0X16MM | PC | 200 | 22/23 | 22*22*35.7 | |
| DSG1154022 | T27-115X4.0X22.2MM | PC | 100 | 9.5/10.5 | 24.5*24.5*14.2 | |
| DSG1156022 | T27-115X6.0X22.2MM | PC | 100 | 15/16 | 24.5*24.5*19.2 | |
| DSG1157022 | T27-115X7.0X22.2MM | PC | 100 | 16.5/17.5 | 24.5*24.5*22.2 | |
| DSG1158022 | T27-115X8.0X22.2MM | PC | 100 | 18.5/19.5 | 24.5*24.5*24 | |
| DSG1254022 | T27-125X4.0X22.2MM | PC | 100 | 11.5/12.5 | 26.5*26.5*14.2 | |
| DSG1256022 | T27-125X6.0X22.2MM | PC | 100 | 17/18 | 26.5*26.5*19.2 | |
| DSG1257022 | T27-125X7.0X22.2MM | PC | 100 | 18.5/19.5 | 26.5*26.5*22 | |
| DSG1258022 | T27-125X8.0X22.2MM | PC | 100 | 23/22 | 26.5*26.5*24 | |
| DSG1806022 | T27-180X6.0X22.2MM | PC | 60 | 22/23 | 37.5*19*22.7 | |
| DSG1807022 | T27-180X7.0X22.2MM | PC | 30 | 12/13 | 37.5*19*13.5 | |
| DSG1808022 | T27-180X8.0X22.2MM | PC | 60 | 28/29 | 40*30*20 |
