Product Details:
|
| Abrasive: | Silkon Carbide | Color: | Black |
|---|---|---|---|
| Hardness: | R | Max Working Speed: | 80 M/S |
| Grit Size: | 30#,46#,60# | Iterm NO.: | FCC3553025 |
| Application: | Stone And Concrete,cast Iron | Bonding Agent: | Resin Bonded |
| Arbor Size: | 7/8 In | Disc Type: | Flat Shape |
| High Light: | 355mm Stone Cut Off Wheel,80M/S Stone Cut Off Wheel,355mm Abrasive Cut Off Wheel |
||

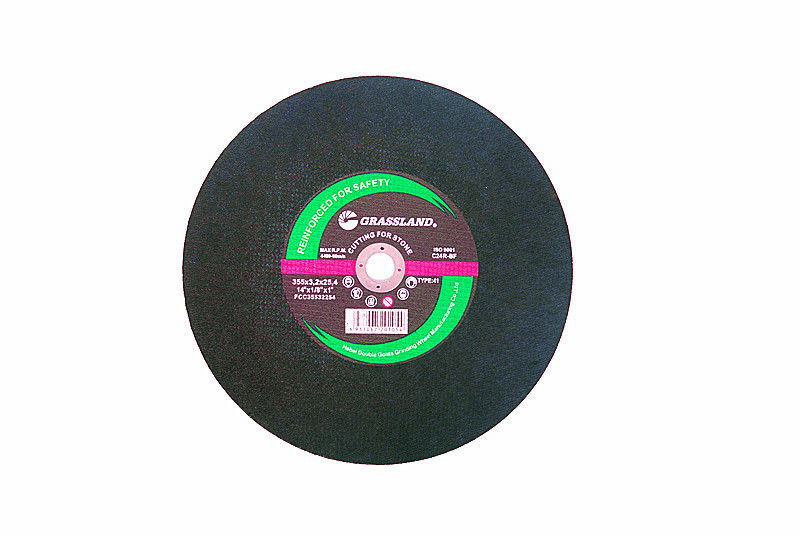

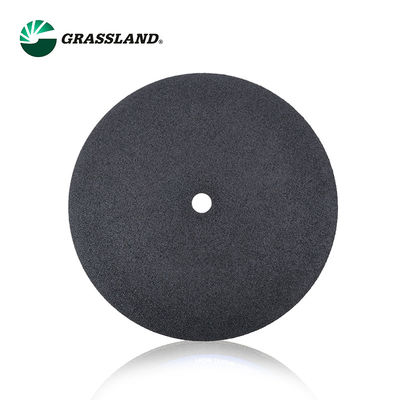

Grassland 355mm abrasive flat cutting stone cut off disc wheel
Product details
• Dimensions: 355mm (14 inch)
• Thickness: 3.0mm
• Hole/Bore: 25.4mm
• Silicon Carbide abrasive is suitable for cutting nonferrous materials such as concrete and masonry, as well as aluminum.
• max working speed standard 80 m/s
• Manufactured to EN 12413 standard.
• Max. Speed: 4400 RPM
Flat Stone Cutting Discs are manufactured using Silicone Carbide abrasive grit with fibreglass reinforcing and resin bonded to provide both safety and optimum cutting performance. Stone cutting discs must never be used for grinding and must always be presented to the workpiece at an angle of 90º. For use with a variety of machines, mini-grinders to stationary cutting-off machines.
Big size stone cutting discs
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) | MOQ |
| Flat cutting disc for stone 80 m/s | FCC3003225 | T41-300X3.2X25.4MM | PC | 25 | 11.5/12.5 | 30*30*9.5 | 5,000 |
| FCC3004025 | T41-300X4.0X25.4MM | PC | 25 | 14/15 | 30*30*11 | 5,000 | |
| FCC3503225 | T41-350X3.2X25.4MM | PC | 25 | 16/17 | 35.5*35.5*9.5 | 5,000 | |
| FCC3504025 | T41-350X4.0X25.4MM | PC | 20 | 17/18 | 35.5*35.5*9.5 | 5,000 | |
| FCC4003225 | T41-400X3.2X25.4MM | PC | 25 | 18.5/19.5 | 40*40*9.5 | 5,000 | |
| FCC4004025 | T41-400X4.0X25.4MM | PC | 20 | 16.5/17.5 | 40*40*11 | 5,000 |
Flat stone cutting discs
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) | MOQ |
| Flat cutting disc for stone 80m/s | FCC0751009 | T41-75X1.0X9.5MM | PC | 800 | 7/8 | 34*17*17 | 10,000 |
| FCC0751695 | T41-75X1.6X9.5MM | PC | 800 | 12/13 | 34*20*17 | 10,000 | |
| FCC1001016 | T41-100X1.0X16MM | PC | 400 | 7/8 | 22*22*15.7 | 10,000 | |
| FCC1002016 | T42-100X2.0X16MM | PC | 400 | 14/15 | 27.7*22*22 | 10,000 | |
| FCC1151022 | T41-115X1.0X22.2MM | PC | 400 | 10/11 | 24.5*24.5*15.7 | 10,000 | |
| FCC1151622 | T41-115X1.6X22.2MM | PC | 400 | 13/14 | 24.5*24.5*19.2 | 10,000 | |
| FCC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9/10 | 24.5*24.5*13.2 | 10,000 | |
| FCC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | 10,000 | |
| FCC1251622 | T41-125X1.6X22.2MM | PC | 400 | 15/16 | 26.5*25.6*19.2 | 10,000 | |
| FCC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 8/9 | 26.5*26.5*13.2 | 10,000 | |
| FCC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | 10,000 | |
| FCC1502022 | T41-150X2.0X22.2MM | PC | 200 | 15/16 | 32*32*13.2 | 10,000 | |
| FCC1801622 | T41-180X1.6X22.2MM | PC | 200 | 19/20 | 37.5*19*22.7 | 10,000 | |
| FCC1802022 | T41-180X2.0X22.2MM | PC | 100 | 9.5/10 | 37.5*19*13.2 | 10,000 | |
| FCC2301622 | T41-230X1.6X22.2MM | PC | 50 | 7/8 | 24*24*11.7 | 10,000 | |
| FCC2302022 | T41-230X2.0X22.2MM | PC | 100 | 17/18 | 24*24*25.7 | 10,000 |
